Inflatable Packers Charts to Print for your files |
|
If you have trouble printing any of these charts, Please email us and we can send them to you via email. We are also available for technical assistance, please call Mark or Ron at 253-770-0315. |
|
Mailing Address:
QSP Packers, LLC PO Box 1544 Sumner, WA 98390 |
|
QSP PACKERS, LLC Weight Chart |
|
If you have trouble printing any of these charts, Please email us and we can send them to you via email. We are also available for technical assistance, please call Mark or Ron at 253-770-0315. |
|
The following charts are available to assist your success in the field Scroll down the page to Preview Charts (TO PRINT: click on File, Print, set page range to correspond with chart below, click OK) |
|
Packer Inflation Pressure Formula (Print pg 2-2) |
|

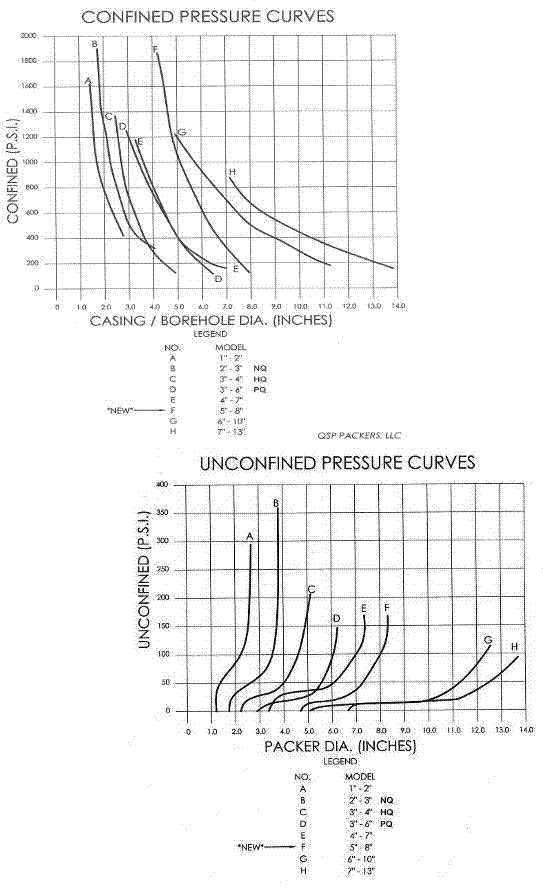

Confined Pressure Curves (Print pg 3-3) |
|
Unconfined Pressure Curves (Print pg 3-3) |
|

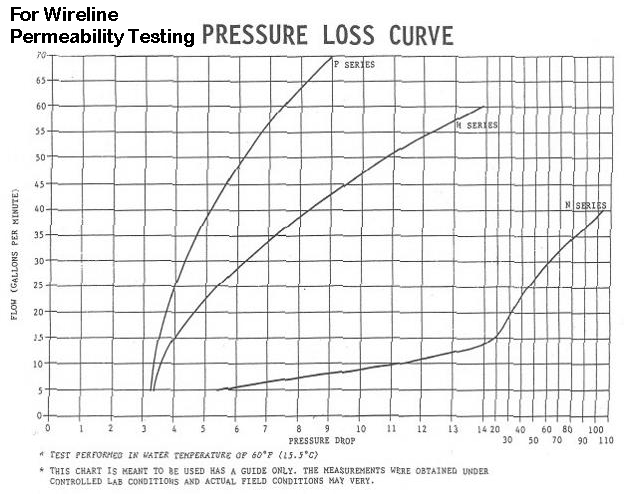

Pressure Loss Curves Chart (Print pg 4-4) |
|

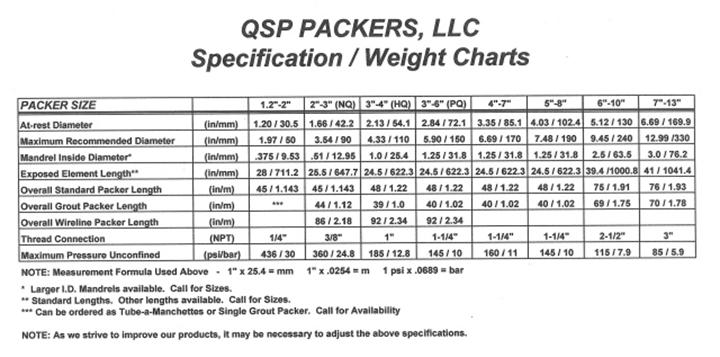

Specification Chart (Print pg 4-4) |
|
Weight Charts (Print pg 5-5) |
