Inflatable Packers Charts to Print for your files |
|
If you have trouble printing any of these charts, Please email us and we can send them to you via email. We are also available for technical assistance, please call Mark or Ron at 253-770-0315. |
|
PACKER INFLATION PRESSURE FORMULA For Inflation with Air or Nitrogen Gas
G = Inflation pressure at gauge (PSI) DP = Depth to top of packer (feet) DW = Depth to static water level in well (feet) Sp = Unconfined packer pressure rating for the well size (PSI) PP = Injection pump pressure (PSI)
1 To calculate Packer Inflation Pressure for a withdraw test (pump out):
G = [ (DP - DW) x .43 ] + Sp + [ (DP - DW) x .43 x .2 ]
NOTE: This total must not exceed confined packer pressure rating for the well size.
2 To calculate Packer Inflation Pressure for an injection test (pump in):
G = [ (DP x PSI per foot of Injected Fluid*) + Sp + PP ] x 1.1 *.43 for Water or .6 for grout
NOTE: This total must not exceed confined packer pressure rating plus (DP - DW) x .43
_______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ |
|
Mailing Address:
QSP Packers, LLC PO Box 1544 Sumner, WA 98390 |
|
If you have trouble printing any of these charts, Please email us and we can send them to you via email. We are also available for technical assistance, please call Mark or Ron at 253-770-0315. |
|
QSP Packers is proud to supply Boart Longyear Company and many other customers worldwide with Quality Wireline Packers and Accessories that are Compatible with the “Q” Series Line of NQ, HQ & PQ Wireline/Core Drilling Equipment.
Q™ is a Federally Registered Trademark of Boart Longyear Company |
|
The following charts are available to assist your success in the field Scroll down the page to Preview Charts (TO PRINT: click on File, Print, set page range to correspond with chart below, click OK) |
|
Packer Inflation Pressure Formula click here |
|

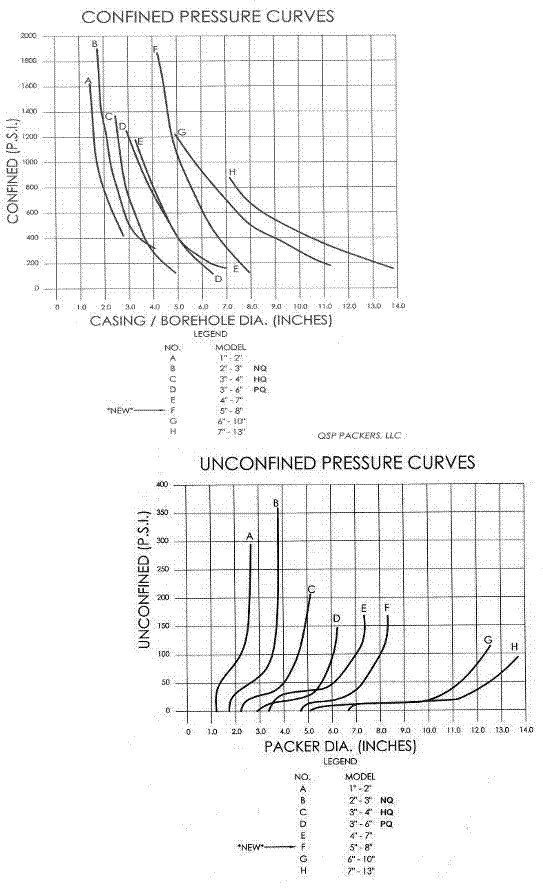

Confined Pressure Curves (Print pg 3-3) |
|
Unconfined Pressure Curves (Print pg 3-3) |
|

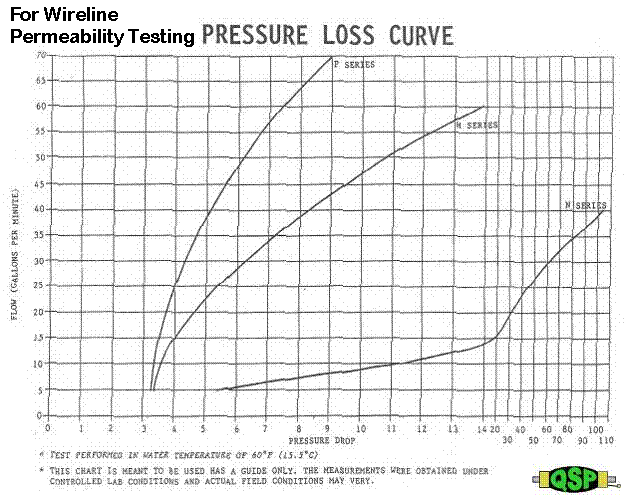

Pressure Loss Curves Chart (Print pg 4-4) |
|

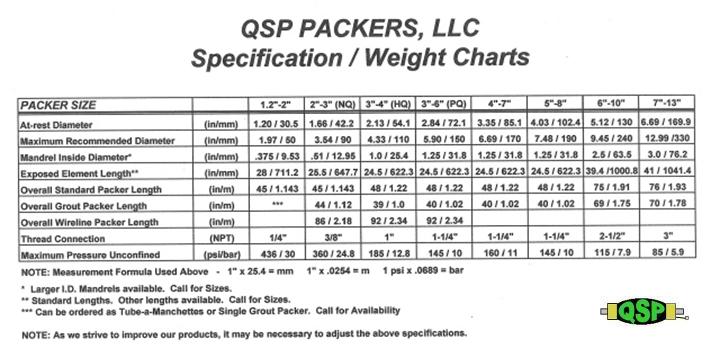

Specification Chart click here |
|

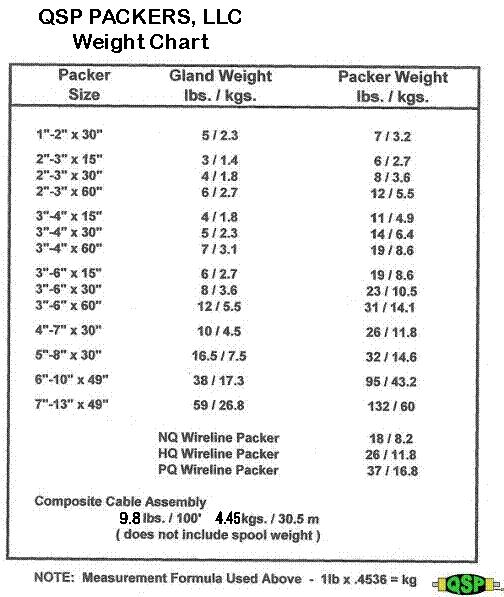

Weight Charts click here |
